※工作溫度Operating temperature rang：-40℃ to+125℃(Including Self-heating).
※儲存溫度Storage termperature rang：-40℃ to+125℃.

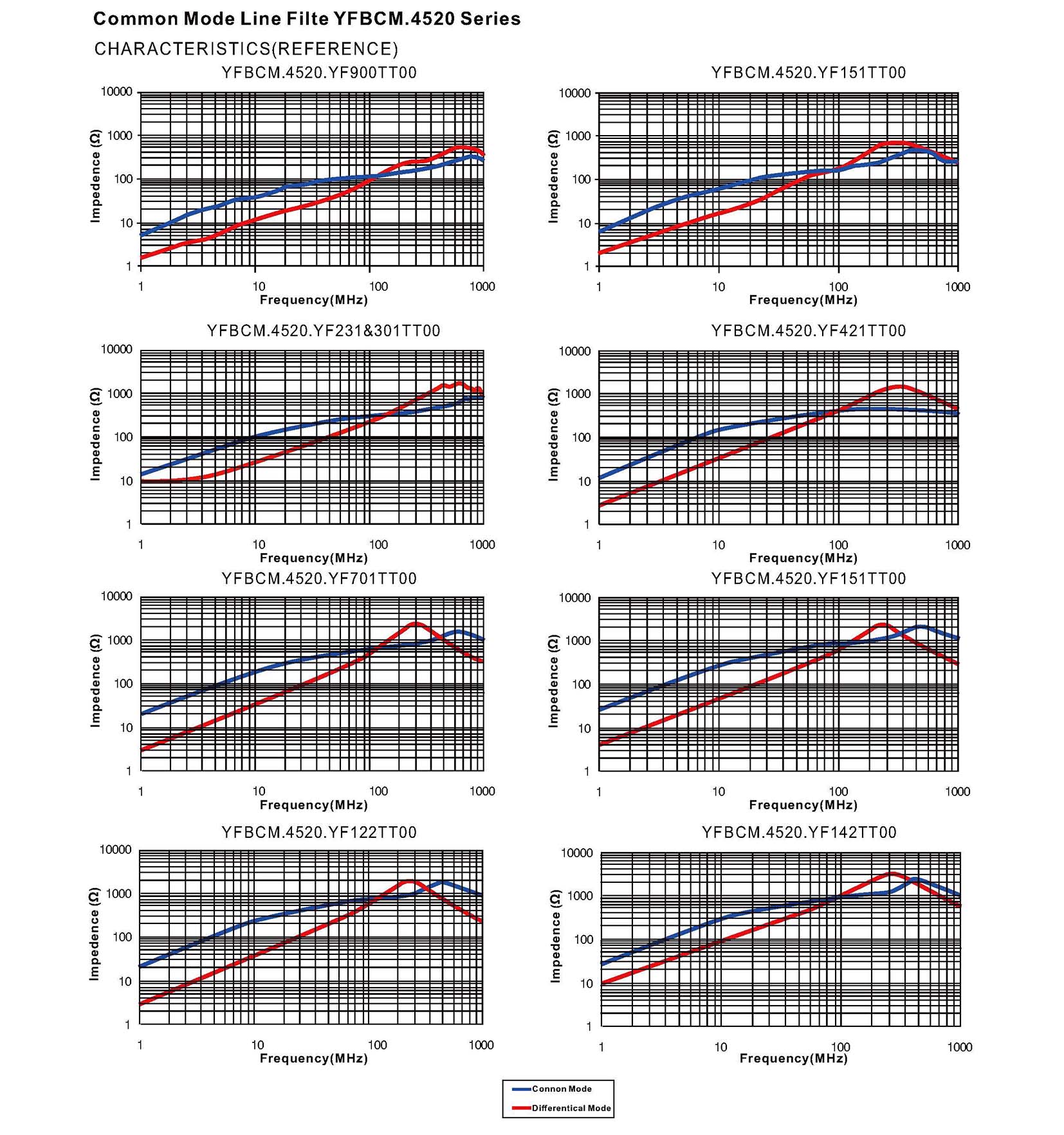

※共模阻抗測試條件為 100MHz,0.5V。Impedance measure condition at 100MHz,0.5V.
※額定電流：使產品溫度上升到 ΔT40℃時所加載的直流電流值(Ta=25℃)。
Rated current：the value of DC current when the temperature rise is ΔT40℃(Ta=25℃).
※工作溫度Operating temperature rang：-40℃ to+125℃(Including Self-heating).
※儲存溫度Storage termperature rang：-40℃ to+125℃.
※共模阻抗測試條件為 100MHz,0.5V。Impedance measure condition at 100MHz,0.5V.
※額定電流：使產品溫度上升到 ΔT40℃時所加載的直流電流值(Ta=25℃)。
Rated current：the value of DC current when the temperature rise is ΔT40℃(Ta=25℃).
